S100 In-Line
Overview

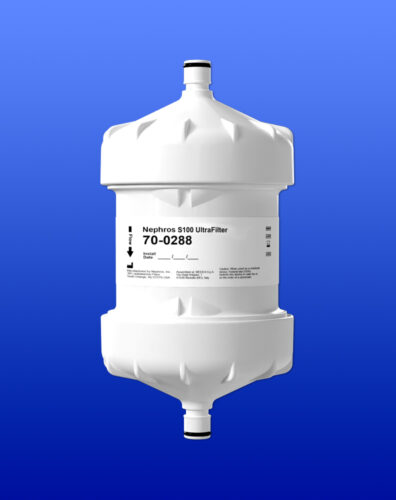

The Nephros S100 in-line microfilter supports bacterial retention in low-pressure environments while providing installation flexibility beyond sink and showers. This model type in a point-of-use microfilter capable of retaining bacteria for 90 days and is FDA 510(k)-cleared as a Class II medical device.
Features and Benefits
Specs
- Max Inlet Pressure: 75psi (5 bar)
- Membrane Material: Polysulfone
- Pore Size: 0.1 Micron
- Bacteria Retention: >109 (B. diminuta)
- Dimensions: 7” L x 2.5” D
- Surface Area: 0.5 m2
- Clean Water Flow Rate: Quick Connect, 1.5 GPM at 50psi (3.5 bar); Threaded, 2.5 GPM at 10psi
- Connections: Quick Connect (CPC (PLC))
- Replacement: Up to 3 months (sinks)
- Configuration: Single-Stage Filtration
S100 filters have been validated by a 3rd-party certified laboratory, in accordance with ASTM F838-20 “Standard Test Method for Determining Bacteria Retention of Membrane Filters Utilized for Liquid Filtration,” with total bacteria retention as defined by “Sterilizing Grade” filter. Nephros S100 Validation Report: NEPH061521. For additional reference see: FDA “Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing- Current Good Manufacturing Practice,” September 2004.
Associated Kits & Components
- 70-0347 Install Kit – S100 In-Line Quick Connect Sink and Eyewash Station
- 70-0348 Install Kit – S100 Threaded Sink and Eyewash Station
